NEW – 2025 Model (replaces 7010413-110)
| Pipe Ø (OD) | 75mm – 360mm (3”- 14”) |
| Wall thickness | 20mm (0.8”) steel / 230V 12mm (0.5″) steel / 110V 50mm (2”) plastics |
| Cuts the following pipe materials | Steel, copper, cast iron, stainless steel, acid-resistant steel, multi-layered materials and all plastics |
THE MOST ADVANCED PIPE CUTTING SYSTEM EVER MADE!
- Much stronger 2200W 110V motor (Also available with 230 v / 2500W motor)
- Electronics protecting the motor from overload and “traffic lights” guiding the operator.
- Laser indicator for precise cutting.
- Improved adjustment mechanism for straight cutting.
- Professional quality – Made in EU.
- Cuts steel pipes with wall thickness up to 20 / 12 mm.
| Voltage / Power | 110V / 2200W |
| Voltage / Current | 110V / 15A |
| No-Load speed | I=1900 r/min, II=2885 r/min |
| Blade diameter | 165mm (6.50”) |
| Mounting bore | 62mm (2.44”) |
| Weight | 17,5 kg (38,6 lbs) |
| Range of use | 75mm – 360mm (3”- 14”) |
| Max. pipe wall | 20mm (0.8”) steel / 230V 12mm (0.5″) steel / 110V 50mm (2”) plastics |
| Electronical unit | Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection | I = Stainless steel and acid-resistant steel, II = all other materials |
| Loading capacity of supports | 465 kg, 1025 lb (3 supports) |

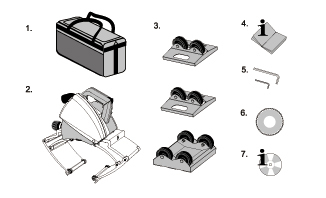

The price includes
- PipeCut Bag 3
- Exact PipeCut 360 Pro Series pipe saw
- Pipe Support 360 Double and 2x 360 Single and tool for changing blade in the bag.
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 165 blade fitted to the machine
Product brochure – click here –>PipeCut360Pro
Video Link Exact 360 Pro series
