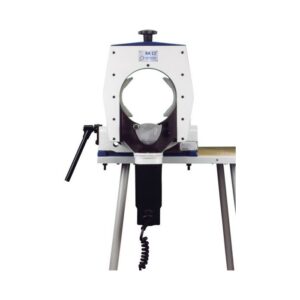

The new GF series sets new standards in orbital pipe machining. Numerous innovative functions combined with an ergonomic design create significant advantages for you in the industrial prefabrication of pipeline systems. Cutting and beveling high-alloy steel (stainless steel), low- and unalloyed steel, plastics, casting materials and non-ferrous metals in just seconds, using the “Planetary Cutting” method.
- Anthracite-coloured coated components for improved sliding properties and protection against corrosion
- Stainless steel clamping attachments (Code 790142241) for protection against contact corrosion included
- Locking mechanism prevents unauthorized usage and theft
- A new ergonomically-designed motor handle for a safe and comfortable operating position, which also enables easy cutting of elbows
- Integrated line laser to determine the cut off point
- 2 position clamping jaws to reduce chatter and enable smaller length of pipe to be machined
- 1 multifunctional tool for all adjustments on the machine
- Extended speed range (65 – 215 rpm), ideal for the cutting of high-performance materials (Hastelloy®, P91, etc.)
- Swivel cable with a quick-disconnect coupler for easy and quick replacement of power cables
Machine Includes:
- 1 Transportation Case
- 1 Saw blade (Code 790042064)
- 1 Set of stainless steel clamping attachments
- 1 Mounting Plate
- 1 Tool Set
- 1 Tube of saw blade lubricant GF TOP
- 1 Bottle of special gear oil
- 1 Set of operating intructions and spare parts list
- Quick disconnect swivel cable.
Packed Dimensions: Height 57cm x Width 33cm x Depth 92cm
Gross Weight: 93kg each
