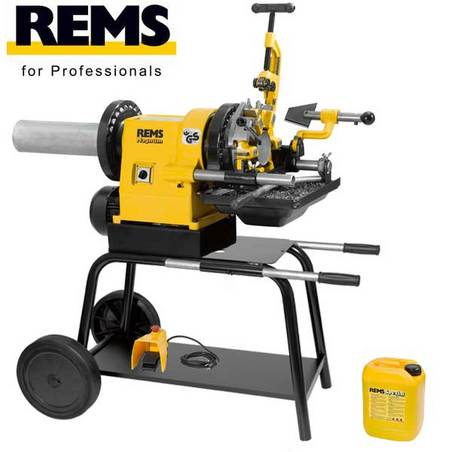

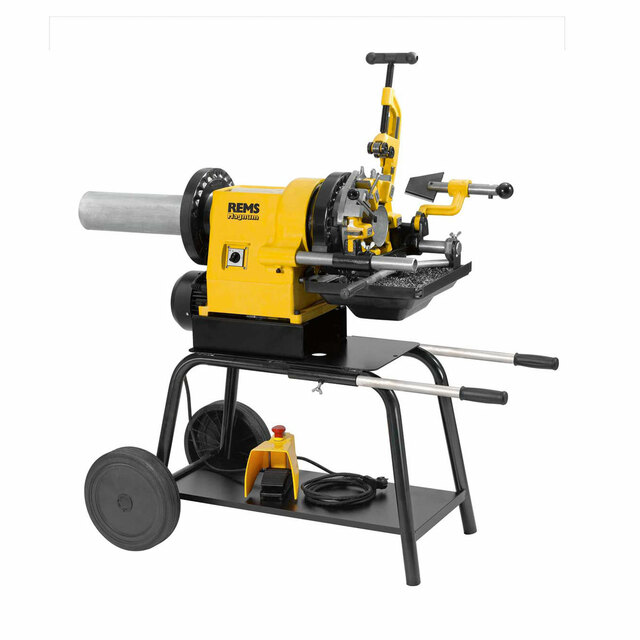

Rems Magnum – High performance threading machine up to 4″. 380444
Pipe threads, ½ “- 4″_ Bolt threads, 20 – 60mm
Compact and robust the Rems Magnum 4000 L-T is ideal for both workshop and site work,
weighing just 81kg it is portable and easily transportable.
Supplied with.
Rems Magnum 4000 L-T Threading Machine
½ – 2″ Automatic Die Head & 2 ½ – 4” Automatic Die Head
The L-T version comes with a large removable oil basin and chip tray.
Self tightening chuck, Universal automatic die head, Automatic Lubrication & Cooling.
With Fixed wheeled Stand & 5 Litres of Oil
Collapsable Stand option available P.O.A
Drive Motor
Fast and powerful 1700w motor, maintenance free gear that runs in a sealed oil bath, overload protection and spindle speed of 23rpm.
Operator friendly safety foot-switch with emergency stop.
Chuck
Quick action hammer chuck eliminates pipe slipping, large space between chuck and centering device ensures secure clamping of long pipes.
Rear centering device for material alignment
Automatic Lubrication/Cooling
Reliable oil pump and high pumping capacity oil distribution is optimized onto the threading point through the die head, this ensures clean threads, long die, gear and motor life.
Universal Automatic Die Head
Just 2 die heads for each of the sizes ½” – 2″ and 2 ½” – 3″for all threads including long threads. Automatic opening with automatic thread length stop for tapered threads. 5 dies ( 2 ½ – 3″ head) ensure even cutting force around the pipe generating round clean threads.
Quick and simple adjustment of thread size and fast change of the dies through lock in positioning within die holder.
Dies
Rems indestructible quality dies ensure excellent start cutting, easy threading and fast clean threads. The dies are manufactured from high grade steel, fully tempered and hardened for extremely long life.
Pipe Cutter
Made of forged steel with a robust body the pipe cutter is self centering has an ergonomic wide handle for powerful in feed and a specially hardened cutter wheel to ensure long service life.
Inner Pipe Deburrer
Strong yet easy to handle deburring device with adjustable positioning. Specially designed twin cutting blade ensures easy deburring and optimum chip flow especially on smaller diameter pipes.
Thread-cutting oil
Rems Spezial and Sanitol cutting oils are recommended to aid thread cutting, they will prolong die life, speed cutting and ensure perfect threading.
Optional extra for Roll Grooving
RG attachment 347000 availalable to allow this machine to drive a roll grooving attachment – see Accessories
